Injection moulds

Products

No se proporcionó una taxonomía.

4‑Cavity Injection Mould for Medical Infusion Clamp

4 Cavities
Cycle Time Reached: 10 sec.
Moulded Part Weight: 4,9 gr.
Material: PP

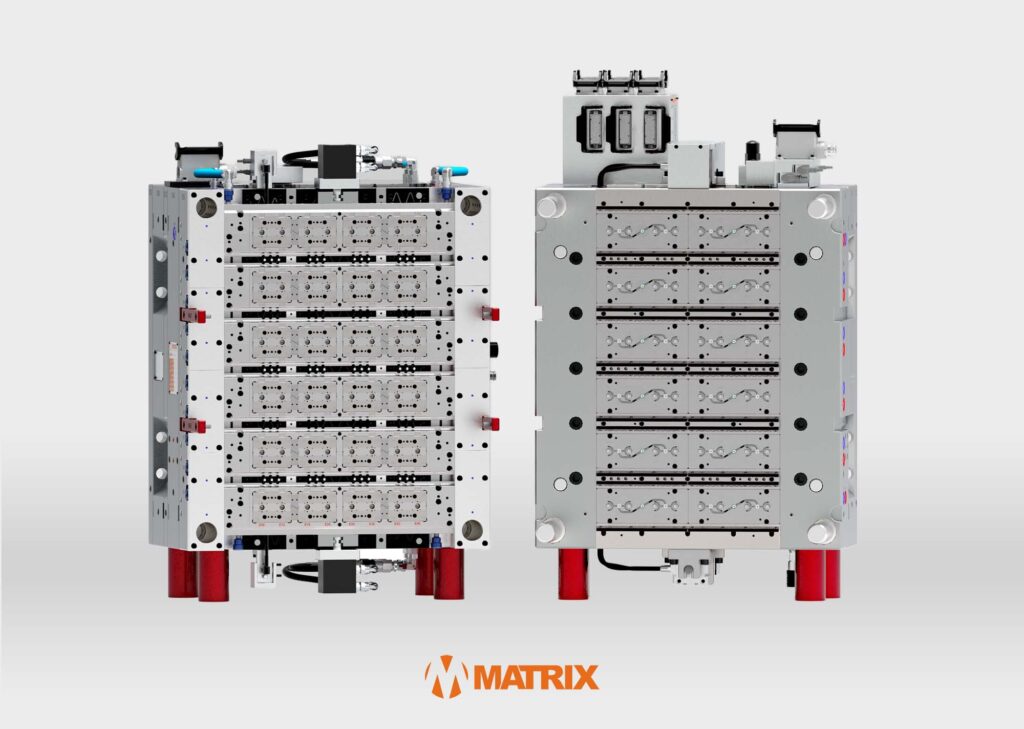

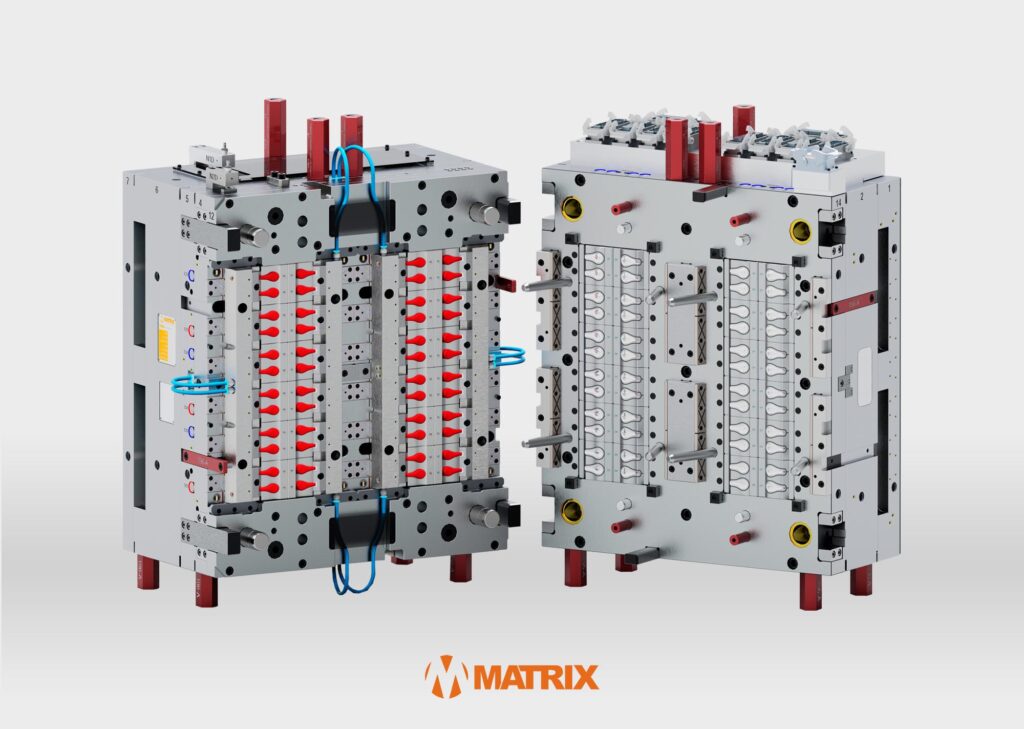

48-Cavity Mould for Head Part of Dispensing System

48 Cavities
Cycle Time Reached: 16 sec.
Moulded Part Weight: 3gr.
Material: HDPE

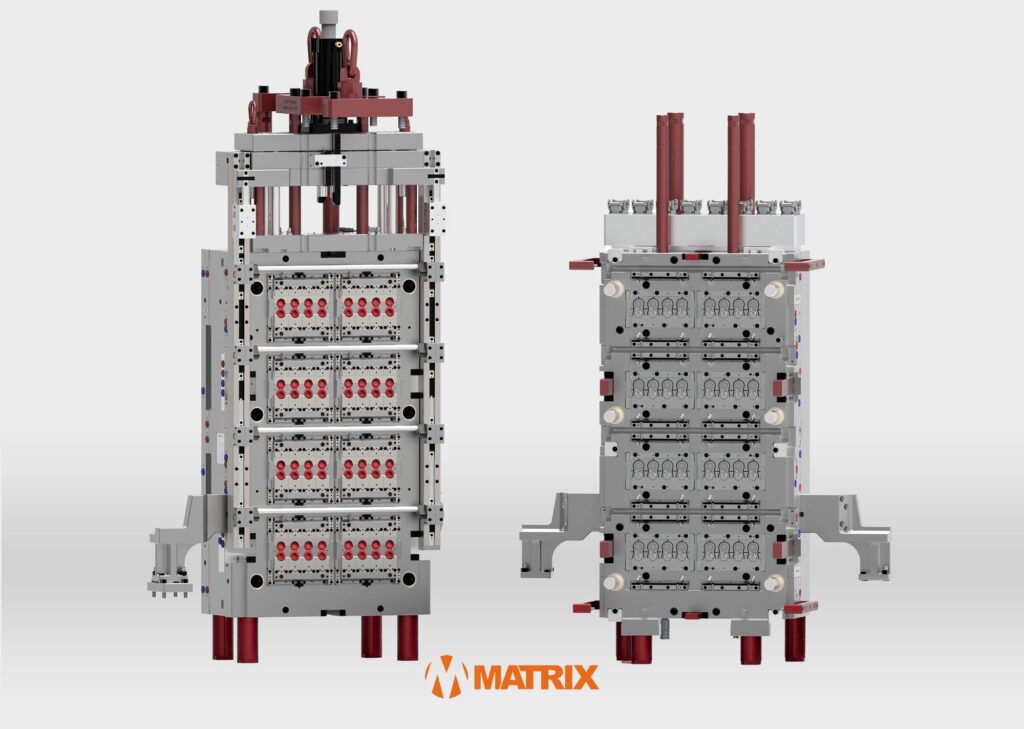

32-Cavity Injection Mould For Edible Oil Cap

32 Cavities. In Mould Closing.
Cycle time reached: 16 sec.
Material: HDPE

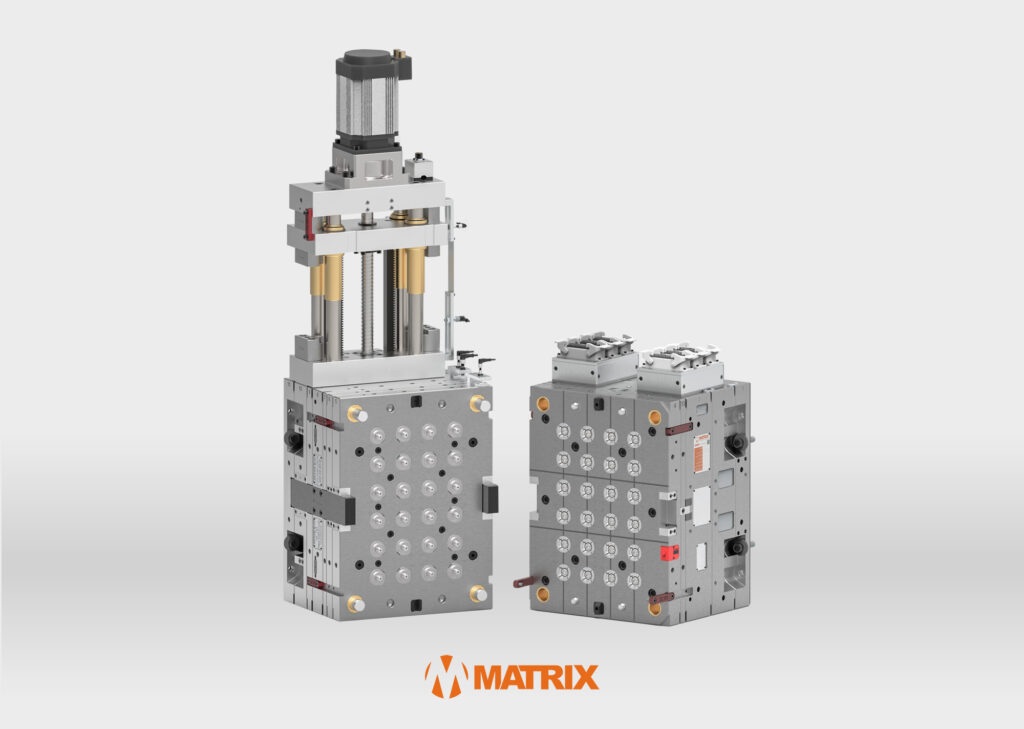

24-Cavity Injection Mould for Dispensing System

24 Cavities
Cycle time reached: 8.8 sec.
Inscrewing servo drive
Moulded Part weight: 0,9gr.
Material: PP

48-Cavity Injection Mould for Dispensing System Part

48 Cavities
Cycle time reached: 13 sec.
Moulded Part Weight: 0.42 gr.
Material: PP

16-Cavity Injection Mould for 2k Beverage Cap

16 + 16 Cavities
Cycle time reached 9,5 sec.
Part weight: 2,9gr. + 0,65gr.

High Speed In-Mould-Cavity-Closing Injection Mould

8 Cavities
Cycle time reached 5,7 sec.
Part weight: 6.5 gr. Max. Thickness 0,9 mm.
Material: PP

96-Cavity Injection Mould for Dispening Pump Part

96 Cavities
Cycle Time Reached: 12 sec.
Moulded Part Weight: 3,4 gr.
Material: PP

16-Cavity Injection Mould for Single-Use Medical Part

16 Cavities
Cycle Time Reached: 8 sec.
Moulded Part Weight: 1.4 gr.
Material: PP

4-Cavity Injection Mould for Suture Cartridge

4 Cavities
Cycle Time Reached: 7 sec.
Moulded Part Weight: 3,6 gr.
Material: HDPE

24-Cavity Injection Mould for Gel Card Blood2

24 Cavities
Cycle Time Reached: 12 sec.
Moulded Part Weight: 4,5 gr.
Material: PP

64-Cavity Injection Mould for Dispensing System

64 Cavities
Cycle time reached: 16 sec.
Moulded Part weight: 3,5 gr.
Material: HDPE

16-Cavity 2K Injection Mould With In-Mould Closing System

16 Cavities
Cycle time reached: 11 sec.
Moulded Part weight: 11 gr.
Material: PP

24-Cavity Injection Mould with In-Mould-Closing System

24 Cavities
Cycle time reached: 14 sec.
Moulded Part Weight: 10 gr.
Material: MDPE

12-Cavity Injection Mould For Flip-Top Cap

12 Cavities
Cycle Time Reached: 15 sec.
Moulded Part Weight: 8,7 gr.
Material: PP

3K Injection Mould With In-Mould-Assembly & Overmoulding

6+6 Cavities
Cycle Time Reached: 13 sec.
Moulded Part Total Weight: 8 gr.
Body Weight: 4,95 gr.
Cap Weight: 2,90 gr.
Overmoulded Ring Weight: 0,1 gr.
Material: PP

Bi Injection Mould for Rubber Handle

2+2 Cavities
Cycle Time Reached: 13 sec.
Moulded Part Weight:
35 gr.
Material: 25gr. Polypropylene + 10gr. EPDM

64-Cavity Injection Mould for Dispening Pump Part

64 Cavities
Cycle Time Reached: 12 sec.
Moulded Part Weight: 2 gr.
Material: MDPE

8-Cavity Injection Mould for Lipstick Drive System

8 Cavities
Cycle Time Reached: 8.2 sec.
Moulded Part Weight: 7,8 gr.
Material: PET

4-Cavity Injection Mould for Medical Device

4 Cavities
Cycle Time Reached: 23 sec.
Moulded Part Weight: 5,5 gr.
Material: ABS

Molde de Inyección de 4 Cavidades para Componente de Dispositivo Médico

4 Cavidades
Tiempo de ciclo alcanzado: 23 seg.
Peso de la pieza moldeada: 5,5 gr.
Material: ABS
